Lunati now offers the TL2 and TR2 designed for use in big-block and small-block Chevrolet race engines used in drag racing, Sprint cars, Dirt Late Models and Modified applications. Both camshafts can be custom ground to meet the requirements of the engine and can provide stability up to 8,800 RPM.
Official Release:
NEW LUNATI TL2 & TR2 CAMS FOR SMALL- & BIG-BLOCK CHEVROLET RACING ENGINES: MORE HIGH-LIFT AREA SHOWS GAINS

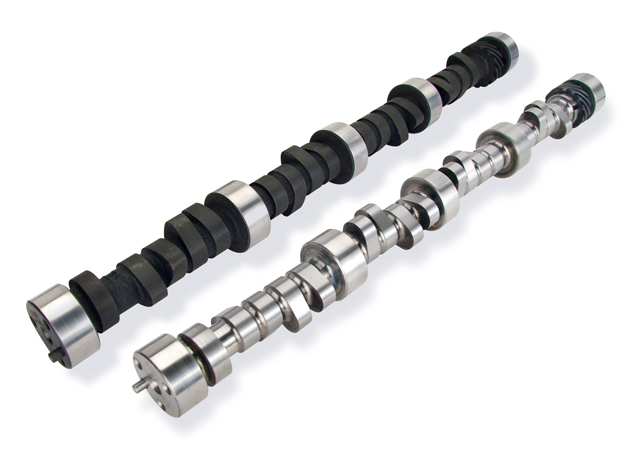

The latest Lunati asymmetrical camshafts, the new TL2 and the TR2, designed for small- and big-block Chevrolet racing engines, are quite the marvels.
The TL denotes Lunati’s cam series for solid flat tappets, the TR designation represents solid roller tappets, and the numeral 2 stands for second generation. Both series of camshafts are designed using the latest technology and feature increased lobe lift—therefore greater valve lift. They are specifically developed for short track Modified applications, Dirt Late Models, Sprint cars, and drag and street-strip vehicles.
Depending on valve train weight these new TL2 and TR2 camshafts provide stability up to 8,800rpm. Furthermore, included within their 30 new part numbers, Lunati has introduced smaller base circle designs that provide extra clearance in stroker engines. TL2 prices start at $187.06 and TR2 at $337.16 with custom grinds available as further attractive options.
Lunati’s design begins at the first valve moment of the cycle, the exhaust opening point. By deliberately delaying the opening point they generate more torque from the power stroke, consequently adding more power to the crank. This process occurs throughout the rpm band and is effective as long as the exhaust gases can be properly scavenged from the chamber at high rpm.
Then, as expected, they open the intake valve before Top Dead Center. But they open it late to reduce the effects of reversion entering the intake port. They also open it FAST, inducing earlier air flow and providing more high-lift area (also known as more area under the curve). This occurs after TDC as the piston heads downward on its intake stroke, which creates high velocity in the port. If a port has high velocity and the intake valve has lots of high-lift area, the port fills the cylinder faster and has more time to fill it—thus increasing the engine’s potential horsepower and torque.
They then close the intake valve gently to prevent valve bounce and facilitate valve train reliability. Of the four timing points the exhaust closing point has the least power-producing effect on the valve train. Yet in this area Lunati exercises special care to ensure exhaust valve reliability.
- Designed for small- and big-block Chevrolet racing engines
- TL2 prices start at $187.06
- TR2 prices start at $337.16
- Custom Grinds are available
