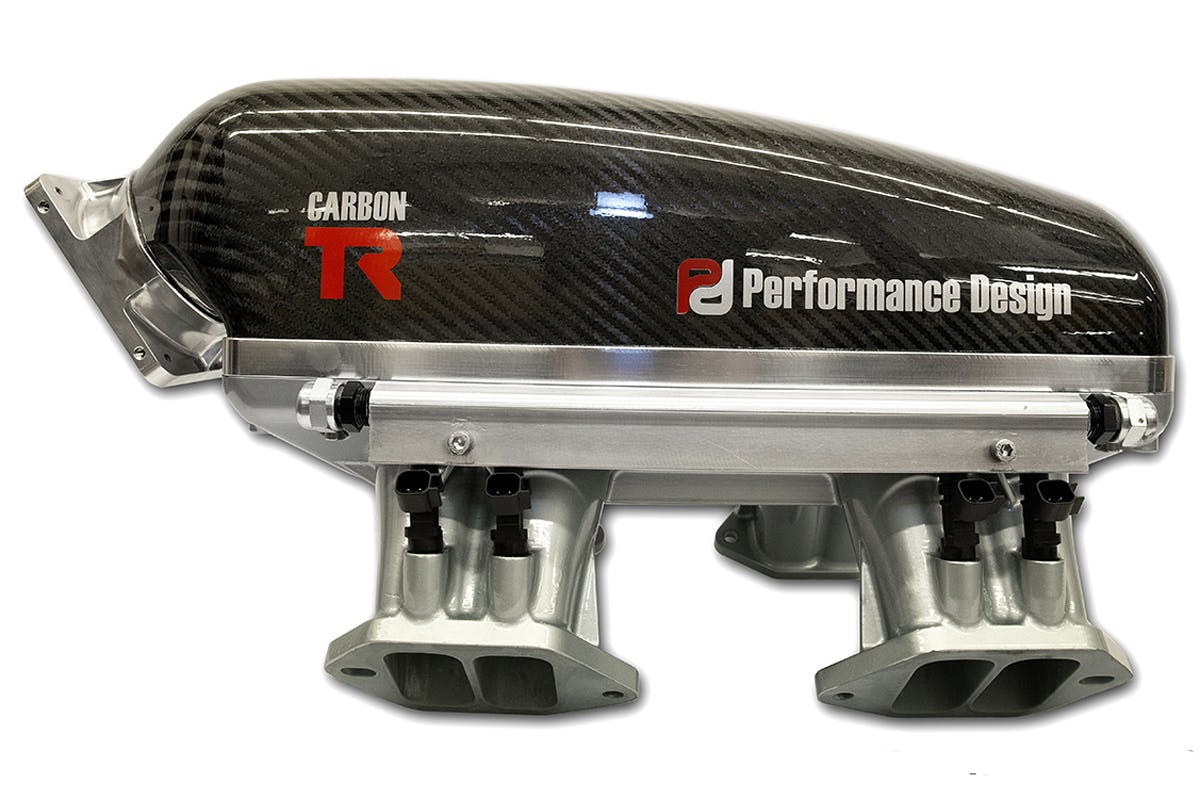

Performance Design’s Carbon TR Modular Tunnel Ram Intake Manifold

Street and strip applications will find the new modular tunnel ram intake manifold from Performance Design to be quite useful. Uniquely designed to resist heat soak, save weight, and stay structurally sound, these manifolds are serious business when it comes to improving your ride’s performance.

Official Release/Features:

The Carbon TR is a modular tunnel ram with common carbon plenum tops and lower runner/plenum assemblies that are produced for multiple applications. Featuring carbon runner bellmouths and plenum for reduced heat soak, reduced weight and structural stiffness. This is the ultimate intake manifold for any street/strip engine.

• Carbon fiber, forward facing single throttle plenum
• Raised carbon runners with ideal bellmouth entries
• 7.8” runner length
• Rear or under throttle MAP port
• 5-Axis CNC head flange for perfect port matching
• Runners: High temp epoxy resin with carbon fiber braid
• Plenum: High temp epoxy resin with 8 layers of carbon fiber and foam core sides
• Fully bonded with high temp aerospace structural adhesive
• Optional ceramic polymer matrix runner and lower plenum further reduces heat soak
• Billet anodizing color can be selected with advance order

Optional configurations for this product:
70385.51.00 Carbon plenum, 102mm throttle flange, all billet runner and lower plenum
70385.52.00 Carbon plenum, 125mm throttle flange, all billet runner and lower plenum
70385.53.00 Carbon plenum, 125mm throttle flange, ceramic polymer matrix runner and lower plenum

Finish options identical to the Carbon XR; anodize or polished billet, polished out of mold carbon or UV gloss paint.
