Wilwood Offers a Compact Combination Brake Master Cylinder Kit

Wilwood Engineering offers a Compact Combination Master Cylinder Kit. Upgrade your current set up with several installation options, ultimately giving your vehicle the best brake response for any application.

Official Release:

Wilwood Disc Brakes Introduces New Compact Combination Master Cylinder Kit

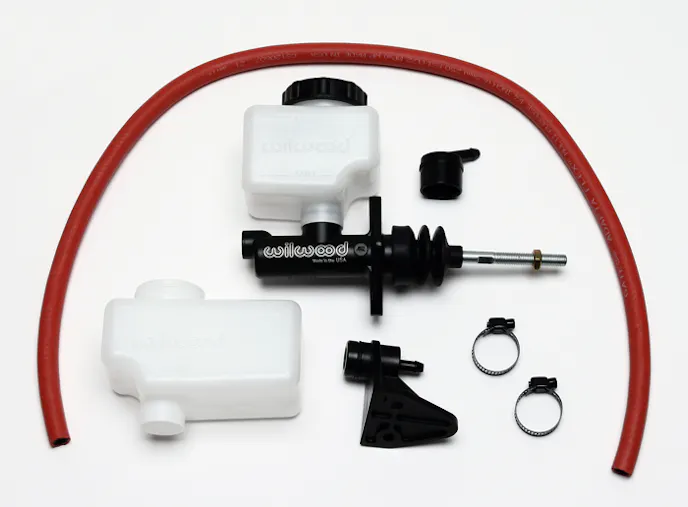

Wilwood Disc Brakes has released a new compact high-performance combination master cylinder kit for competition racing applications and aftermarket upgrades. The new Combination Master Cylinder Kit provides multiple installation options, including remote or direct-mount reservoir. A remote-mount hose and mounting hardware are included for up to four set-up combinations. The new kit features an ultra-compact 3.37” (85,6 mm) lightweight aluminum short-body design. Six bore sizes are available including, 5/8” (15,9 mm), 3/4” (19 mm), 13/16” (20,6 mm), 7/8” (22,2 mm), 1” (25,4 mm), and 1-1/8” (28,6 mm). The master cylinder provides 1.12” (28,5 mm) of usable push rod stroke. Ultra-tight tolerance cut-off ports deliver immediate activation and responsive feel. The internal return spring’s design and high pre-load tension ensure smooth drag-free performance. A 7 oz. (207 ml), and 10 oz. (296 ml) reservoir are supplied. The master cylinder body is finished with a durable black E-coat for maximum corrosion resistance.

Features:

• Provides multiple installation options
• Features an ultra-compact lightweight aluminum design
• Available with six different bore sizes
• Gives you immediate activation, responsive feel and a drag-free performance
