Adjustable Reverse and Forward Mount Pedal Assemblies from Wilwood

Having your brake and clutch pedals combined into one pedal assembly makes driving a breeze. Now you can get that added convenience for your street rod, pro-touring classic or race car thanks to Wilwood’s new Adjustable Reverse Mount and Forward Mount Pedal assemblies. Choose from two different mounting options and added tuning features perfect for any application.

Official Release:

Wilwood Offers New Adjustable Reverse Mount Pedal Assembly and New Forward Mount Pedal Assembly

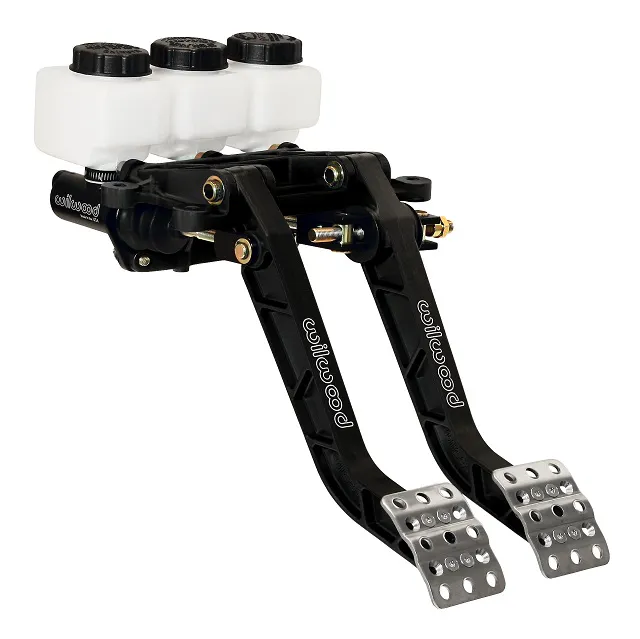

If you are building a racecar, street rod or Pro-Touring vehicle you should be aware of Wilwood’s new Adjustable Reverse Mount Pedal assembly or the new Forward Mount Pedal Assembly that combines the brake and clutch pedals together in one unit. The Reverse Mount Pedal Assembly positions the master cylinders inside of the firewall, while the Forward Mount Pedal Assembly positions the master cylinders outside of the firewall. Both units feature an all aluminum frame and forged aluminum pedal arms with ladder style construction. The frame and the pedal arms are Platinum-E coated for protection and an attractive appearance. The pedal pads are of a special adjustable lightweight design that allows fine-tuning of the pedal location and clearance. Also included with the assembly of your choice are the mounting studs, hardware, clevis and pivot pin balance bar that are designed to provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. The units provide a 6.25 to 1 ratio on both clutch and brake pedal.

Highlights:

• Combine the brake and clutch pedals together into one unit
• Both units feature all aluminum frams and forged aluminum pedal arms with ladder style construction
• Lightweight pedal pad designs allow for fine-tuning  of pedal location and clearance
