Following the introduction of the overhead valve production engine, it was quickly followed by those who appreciated the engineering advantages and wanted to begin squeezing out more power. The innovative pushrod-based valvetrain was augmented with more aggressive cams and stiffer valve springs as the original go-fast hardware.
As time and performance progressed, improved roller rocker arms, screw-in rocker studs, and even stud girdles offered more reliability for these more aggressive cams.
We dove into the engineered advantages of a shaft rocker system with Sheldon Miller and Phil Elliot from T&D Machine Products to gain some knowledge on the basics and benefits.
Rocker Arm Necessity and Invention

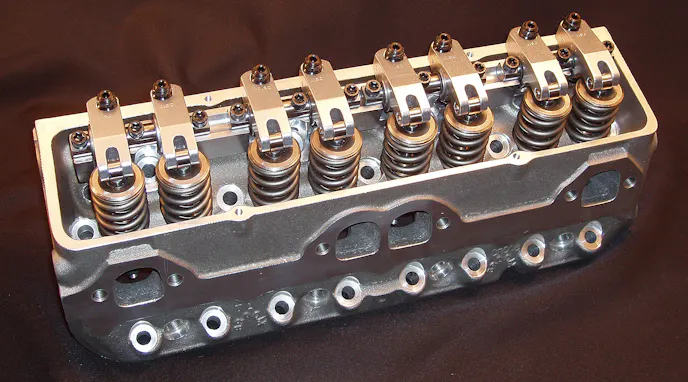

Though the stud and roller rocker arm system still provide a wealth of performance benefits, the strength and stability provided by the shaft rocker arm system offer significant options. Not only can you meet the demands of the most extreme racing engines, but choices now include cost-effective sets for all levels of horsepower.
Thought to be too expensive for street/strip or bracket racing engines, every rocker set T&D manufactures is designed with a specific application in mind. Miller explains, “On our stock-style big-block Chrysler rockers, we use a shaft with far less deflection than the factory shaft. The system is designed for years of service, even in street applications.”
Where Stud Rockers Leave Off

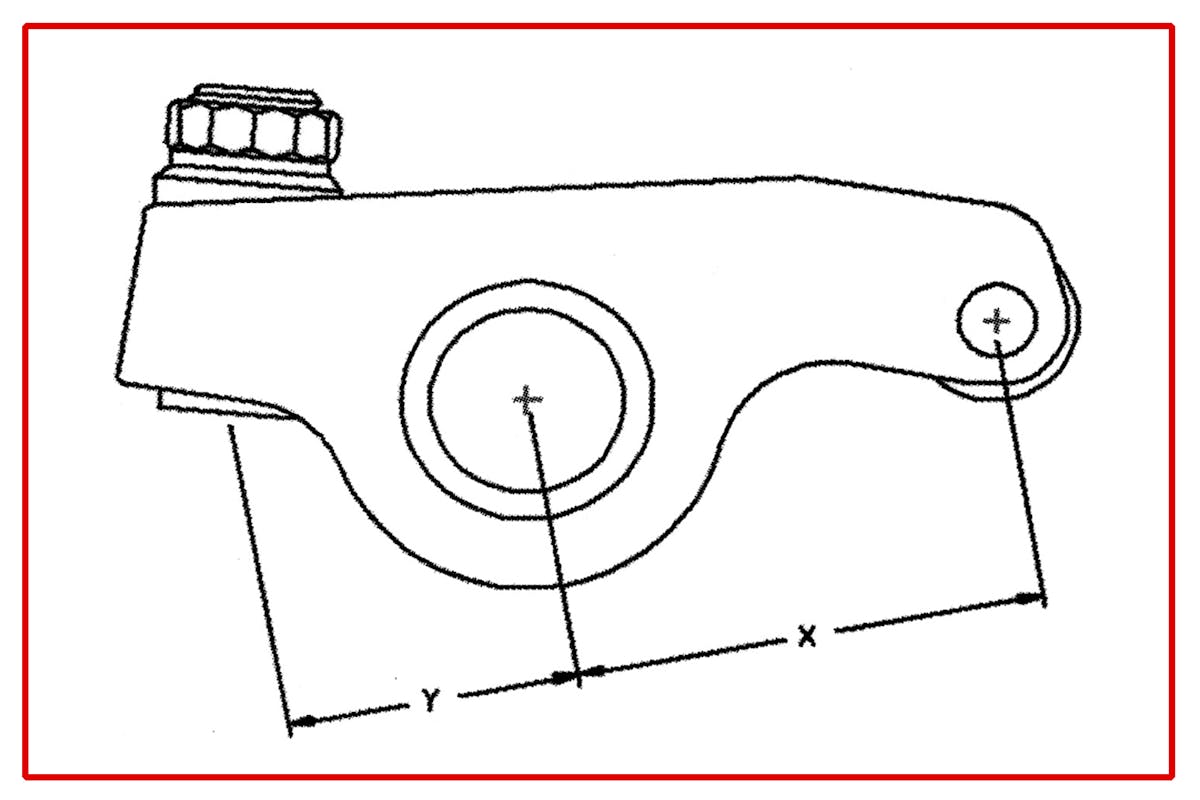

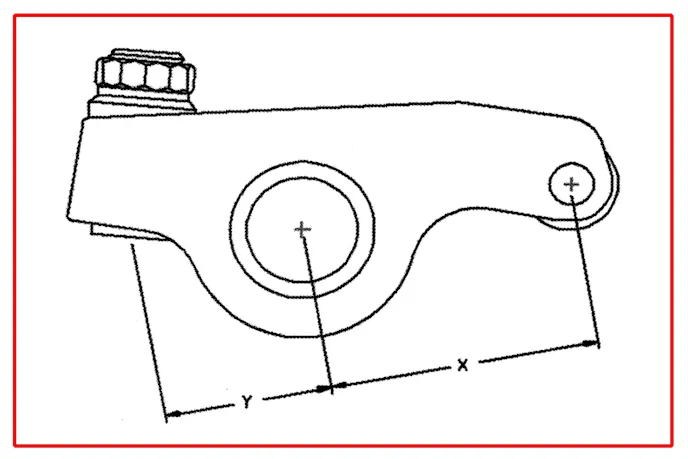

With rocker arm studs screwed into your heads, you have a set pivot, or “fulcrum point,” between the pushrod cup and tip of the valve. The overall length of a rocker arm is called the “pivot length.”
One might consider that the valve lift from your racing cam is one of the determining factors between a stud and rocker system and shaft rockers. Elliot explains, “It is better stated in the opposite way: a rocker arm can affect cam lift. The lift at the valve can be altered by changing the ratio of the rocker arm. To make a camshaft “look bigger,” the rocker ratio is increased, and therefore, increases the valve lift.”
Altering rocker geometry is limited with screw-in studs. Altering rocker geometry is limited with screw-in studs. You can only modify the installed valve height by changing the engine’s pushrod length.
Still, short of moving that fulcrum point with a different cylinder head design, the overall rocker arm pivot length is finite.

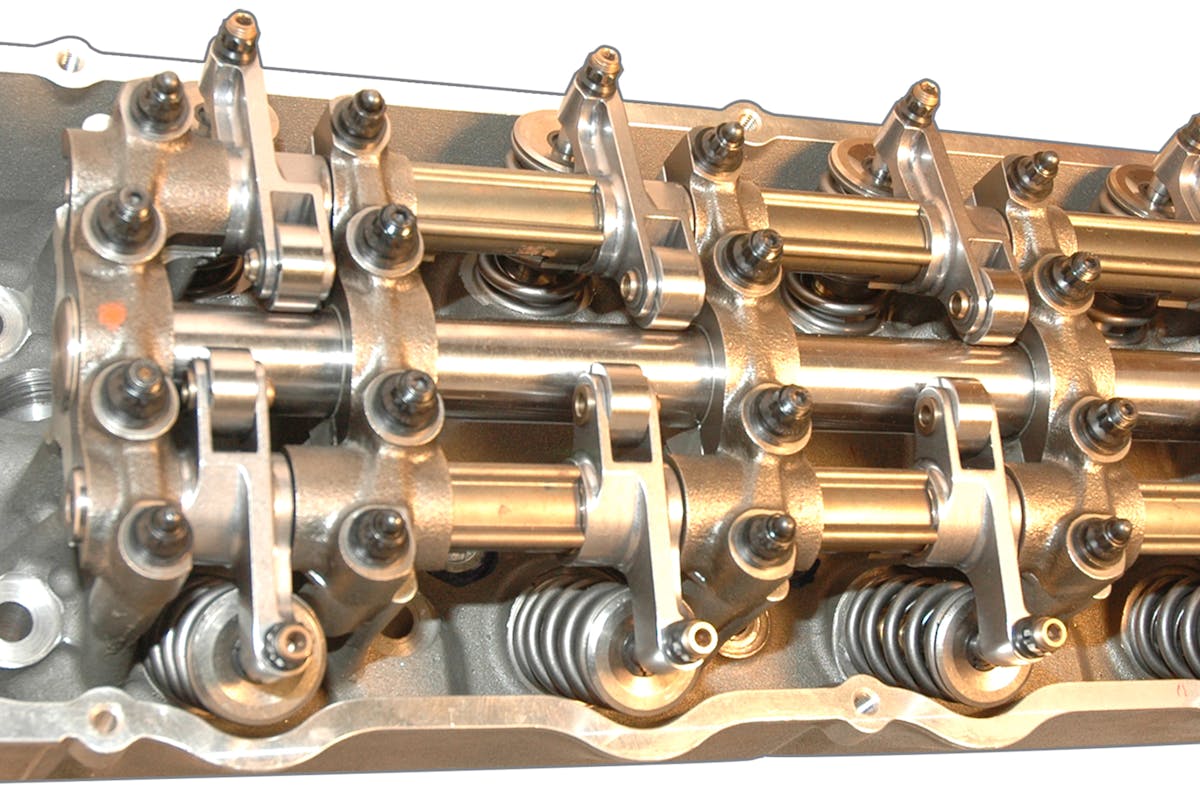

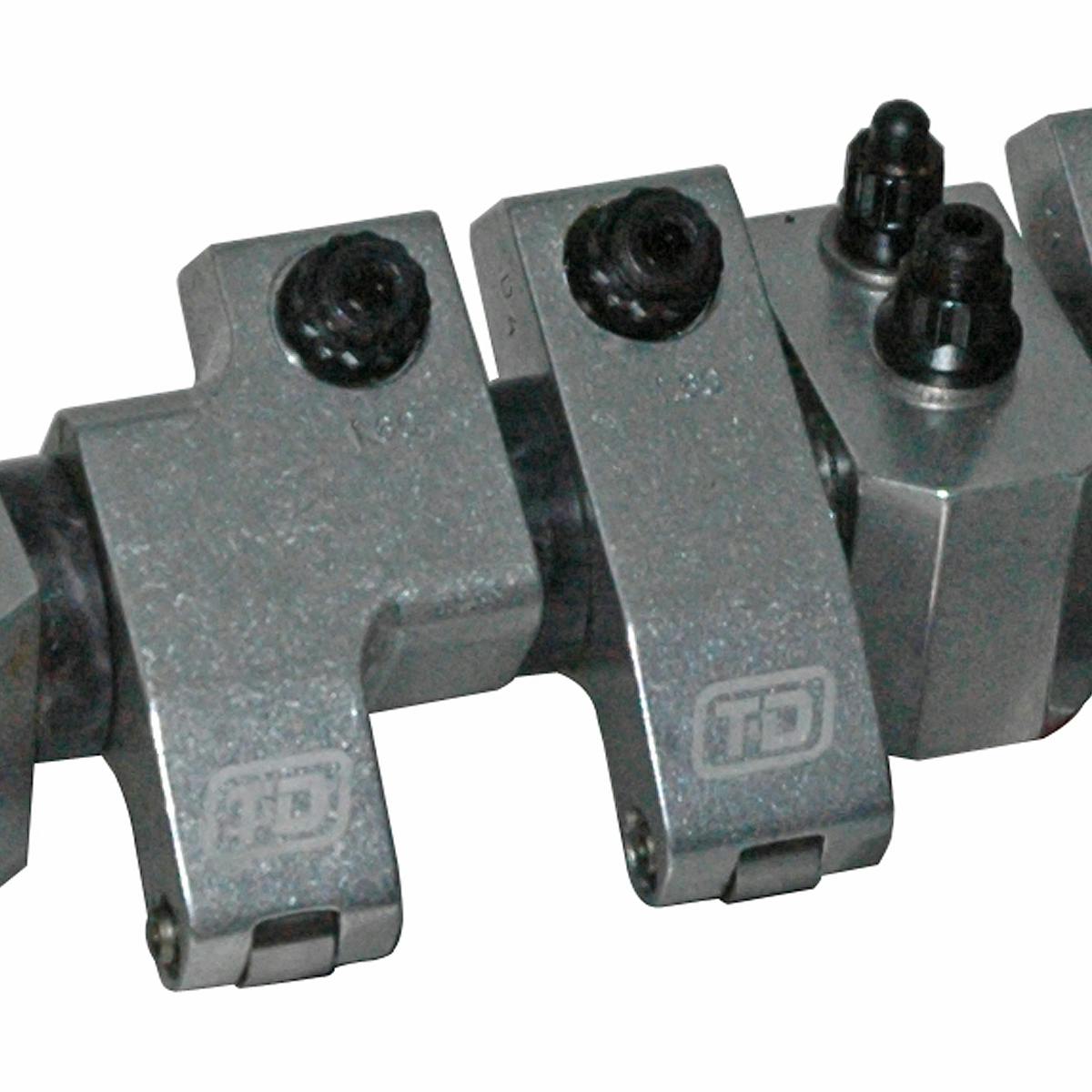

The fundamental shaft rocker uses a solid shaft, two mounting points, and a solid rocker arm without the need of a stud mounted through the center; racers can experience benefits in strength and longevity at horsepower levels just 10- to 20-percent above stock. – Sheldon Miller
Geometry Game Changer

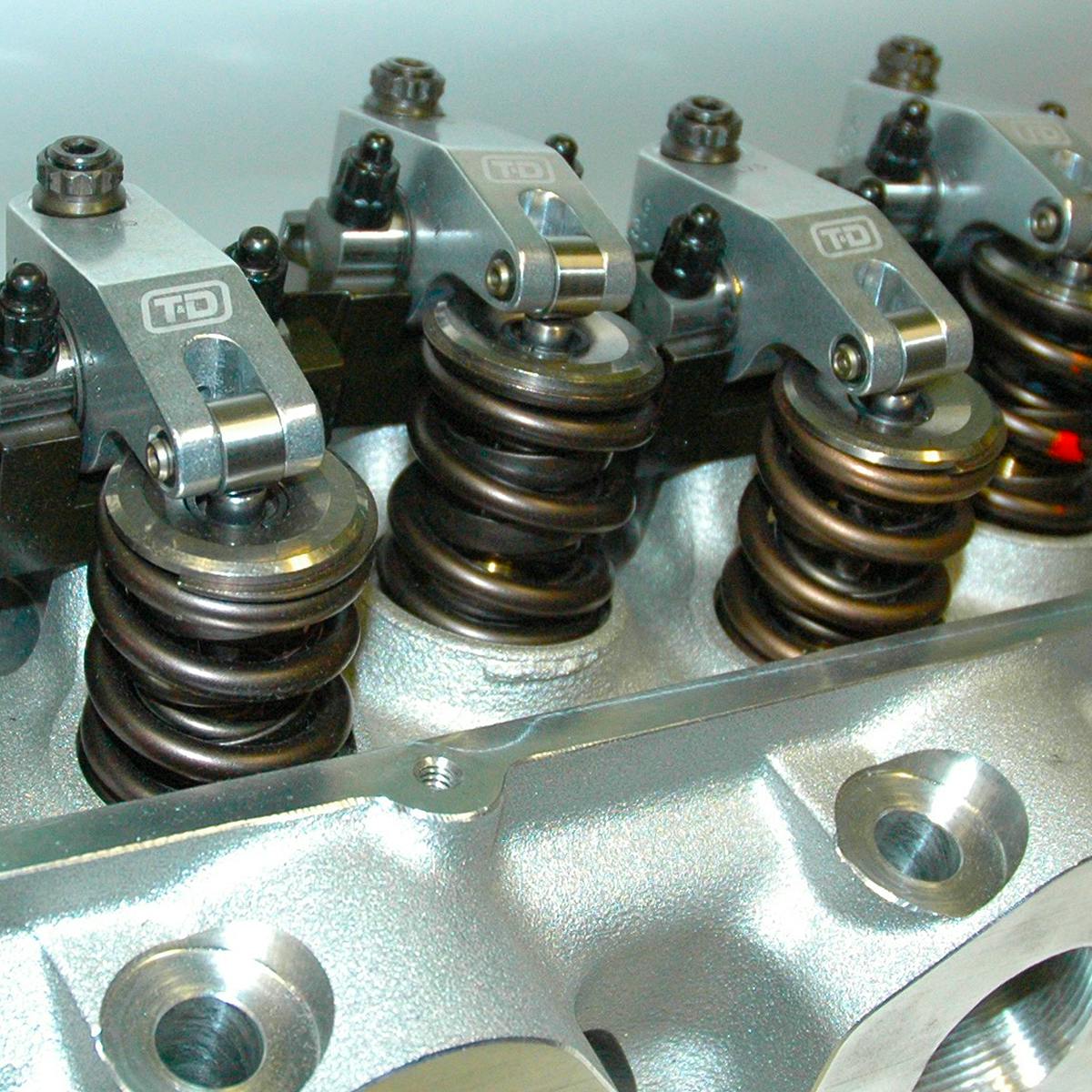

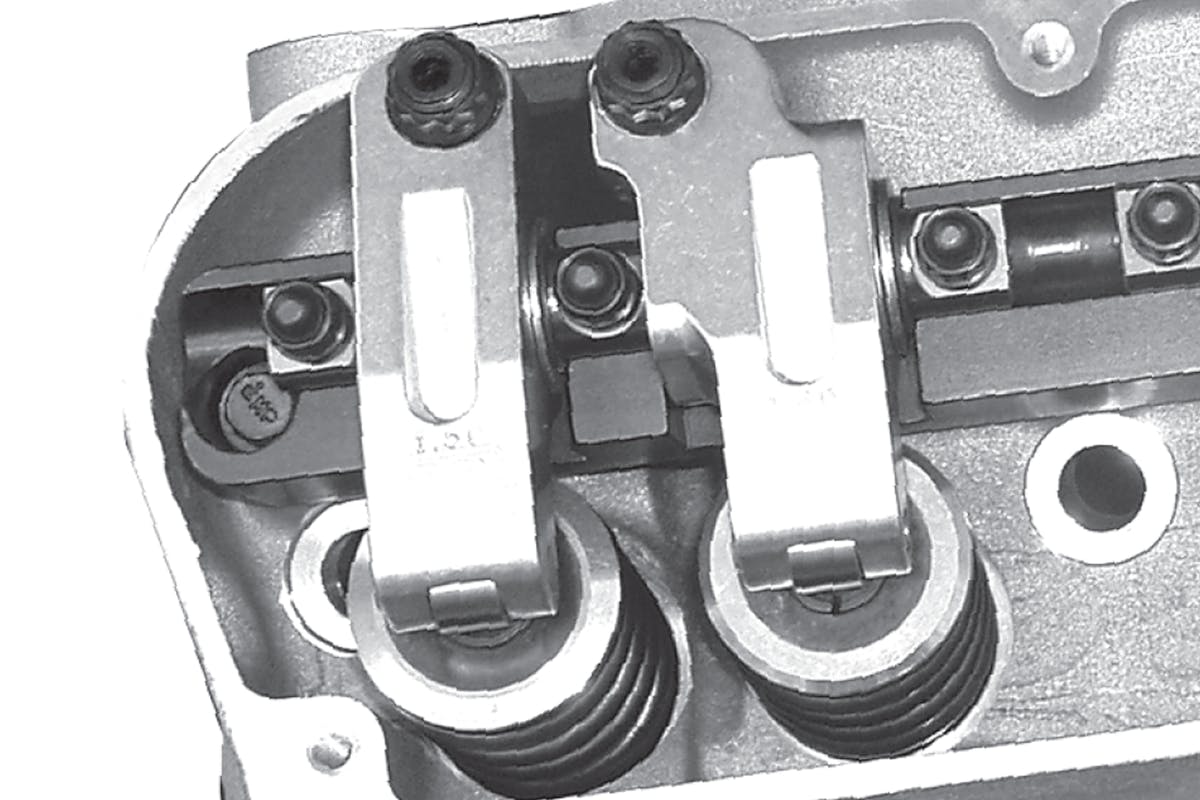

The game-changer for the T&D designs is the stand system that mounts to the cylinder head. These stands support each rocker arm with an entirely different design compared to a rocker stud. By eliminating the stud, the rocker stand can alter the fulcrum point for the rocker arm in ways the stud cannot, thus providing much more opportunity for varied rocker arm ratios.

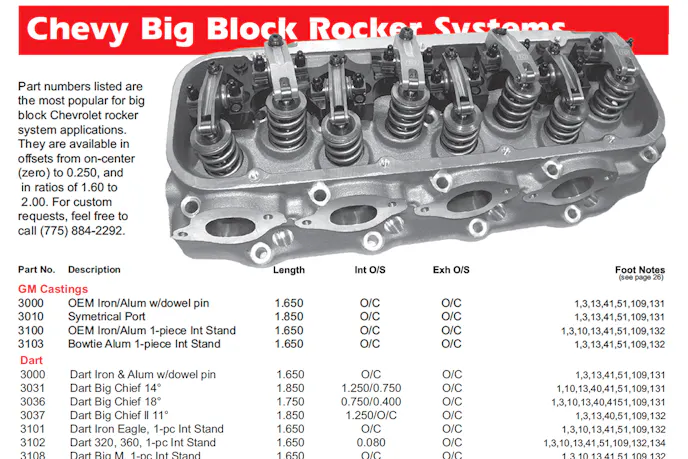

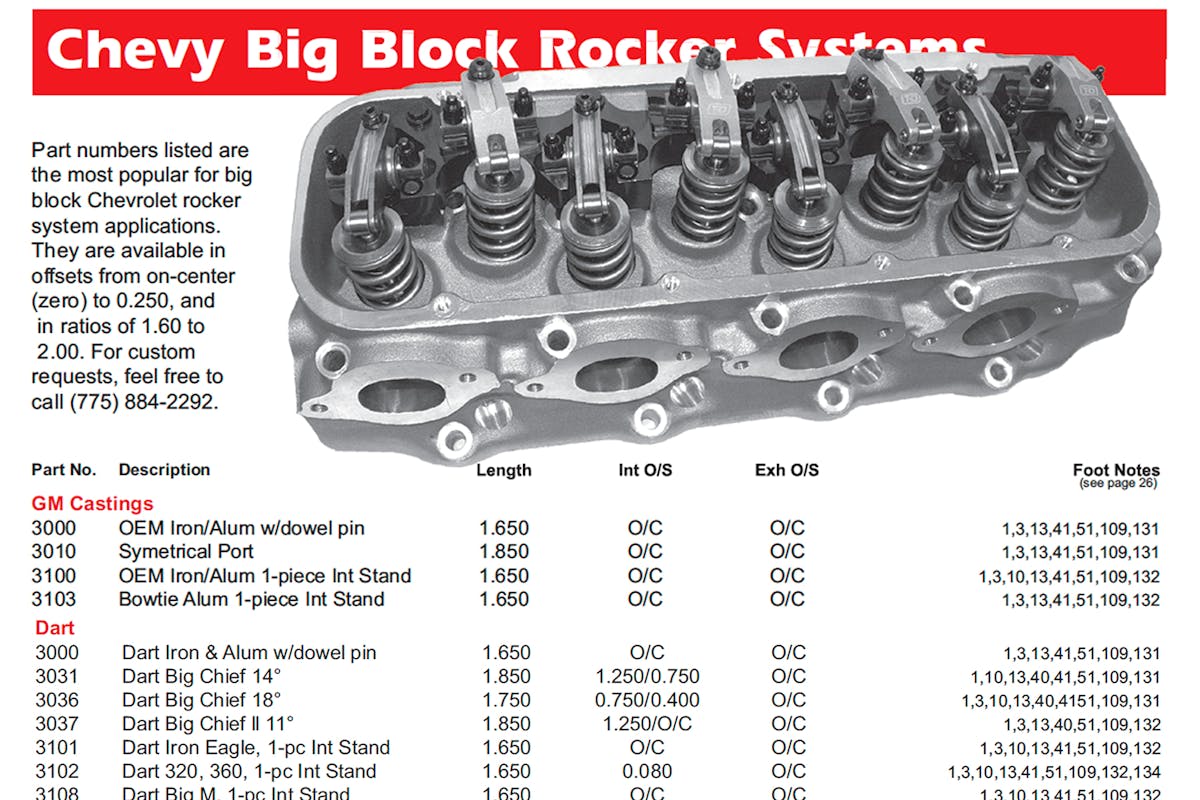

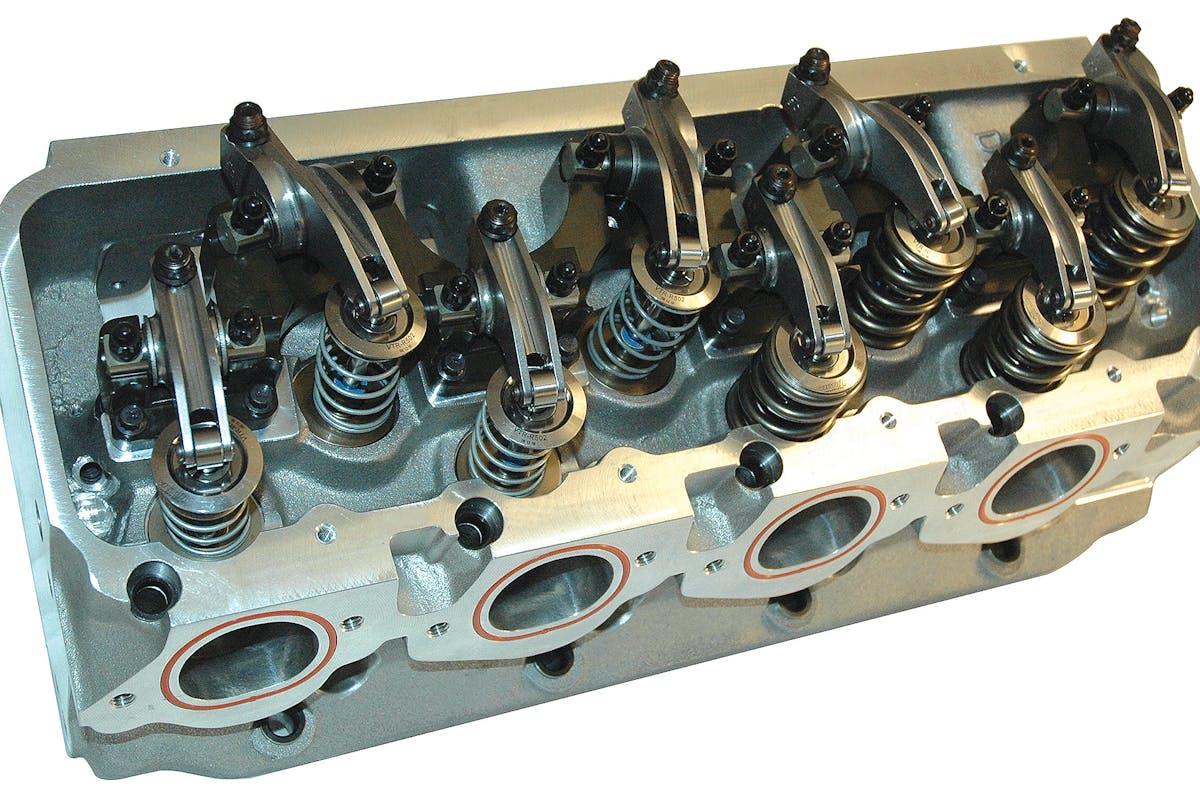

The vast selection of shaft rocker systems available within the T&D Machine catalog illustrates the wealth of different rocker arms available in varied designs. For example, the dimensions available for different big-block Chevrolet head designs can range from a 1.650-inch to a 2.150-inch overall rocker length.

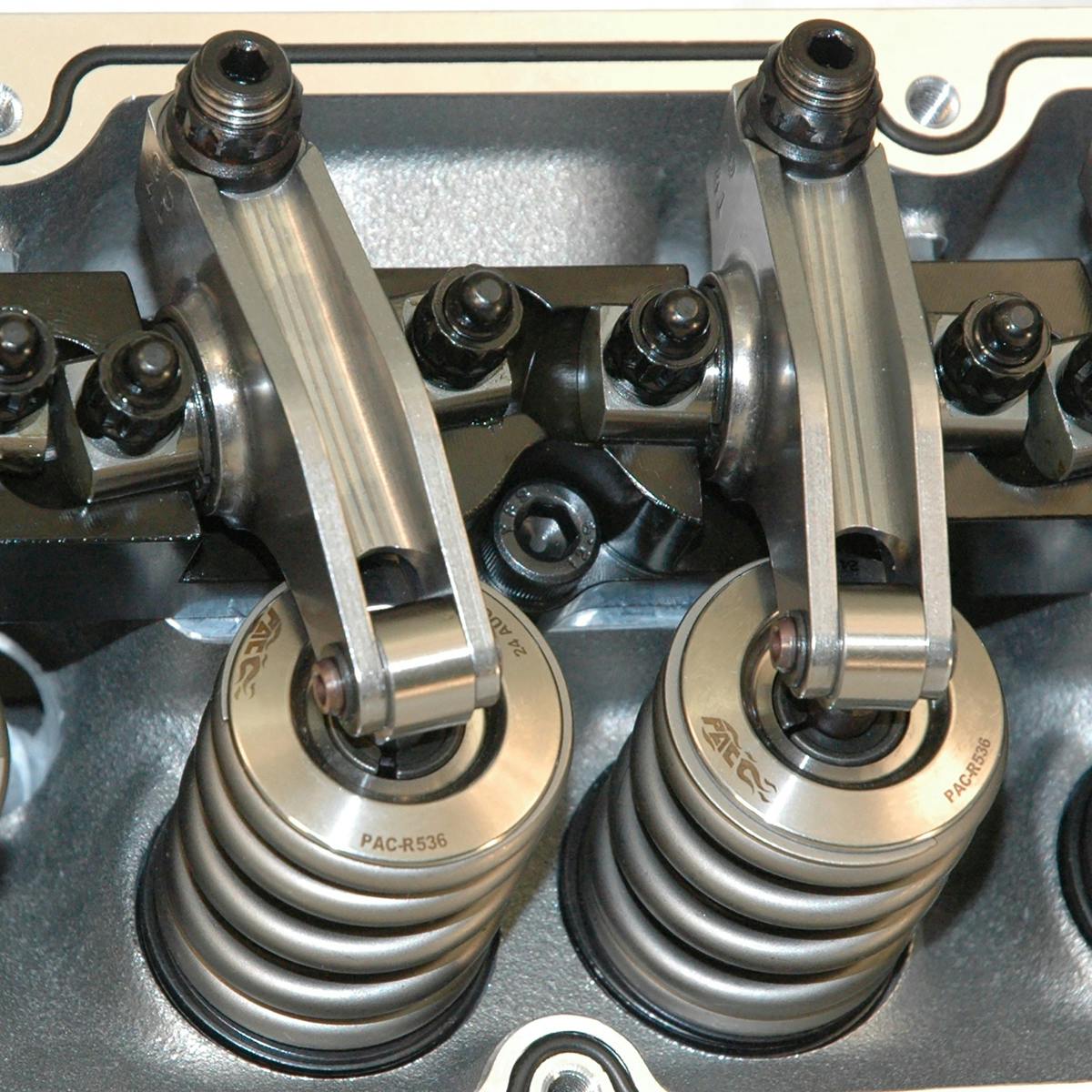

Not only does the rocker stand offer ratio options, but there is also the ability to offset the point where the rocker arm mates with the pushrod. In many cases, OEM cylinder heads have the pushrod, stud, and valve tip all in line. With the advent of larger valves and relocated intake runners to increase horsepower, the need to offset the pushrod or the roller valve tip becomes necessary.
If you think you might have a unique rocker arm ratio or offset situation, it’s pretty safe to say that T&D has been there and done that. It will work with customers and their applications to engineer the proper geometry.
“In many cases, the fulcrum ratios of the rocker arm, combined with the amount of offset, will limit how much ratio we can design into a given application,” Miller describes. “There are limits with the fulcrum length compared to the overall rocker ratio. When changing to a longer rocker, we must also change the stand to keep geometry or tip placement properly located. We do that all the time for customers.”

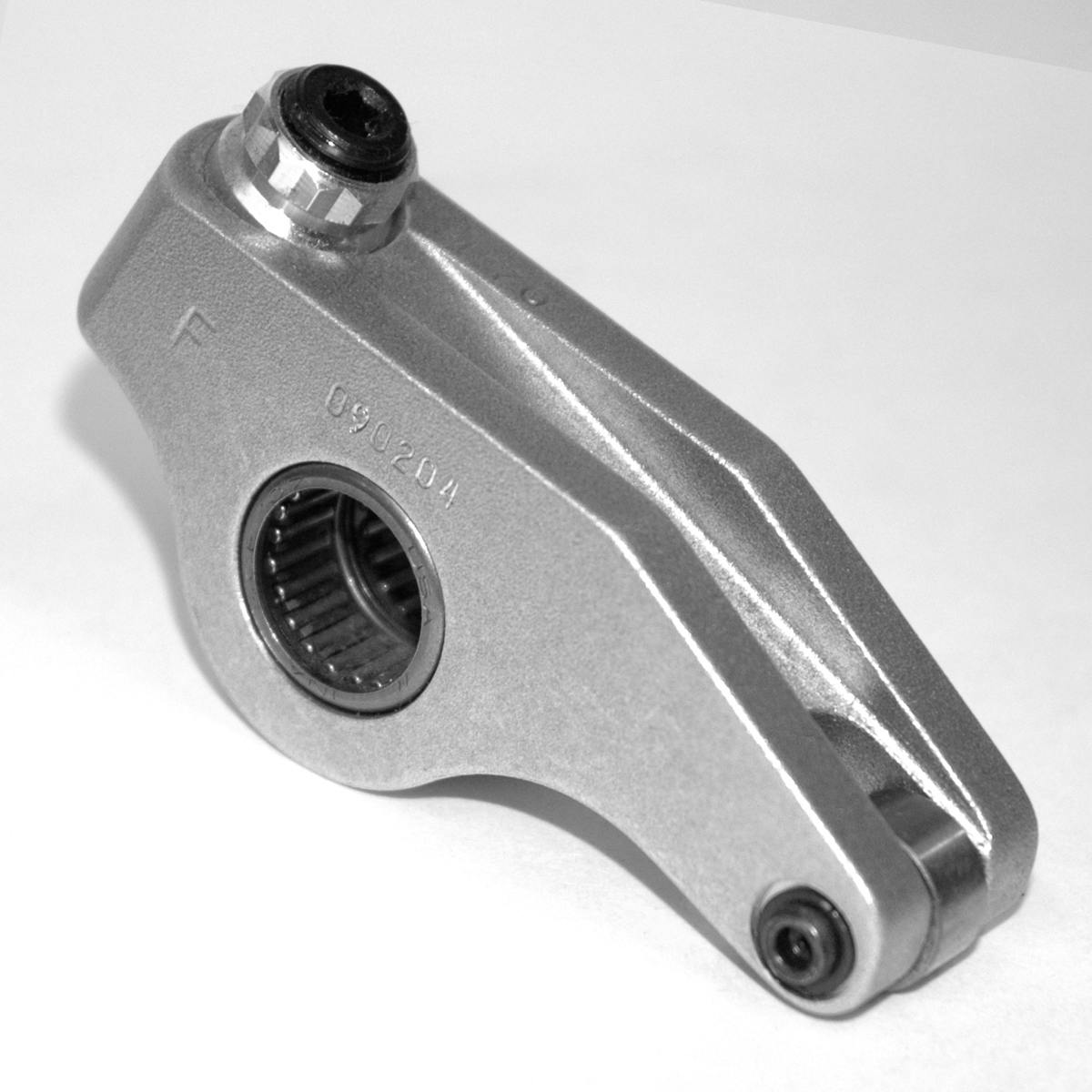

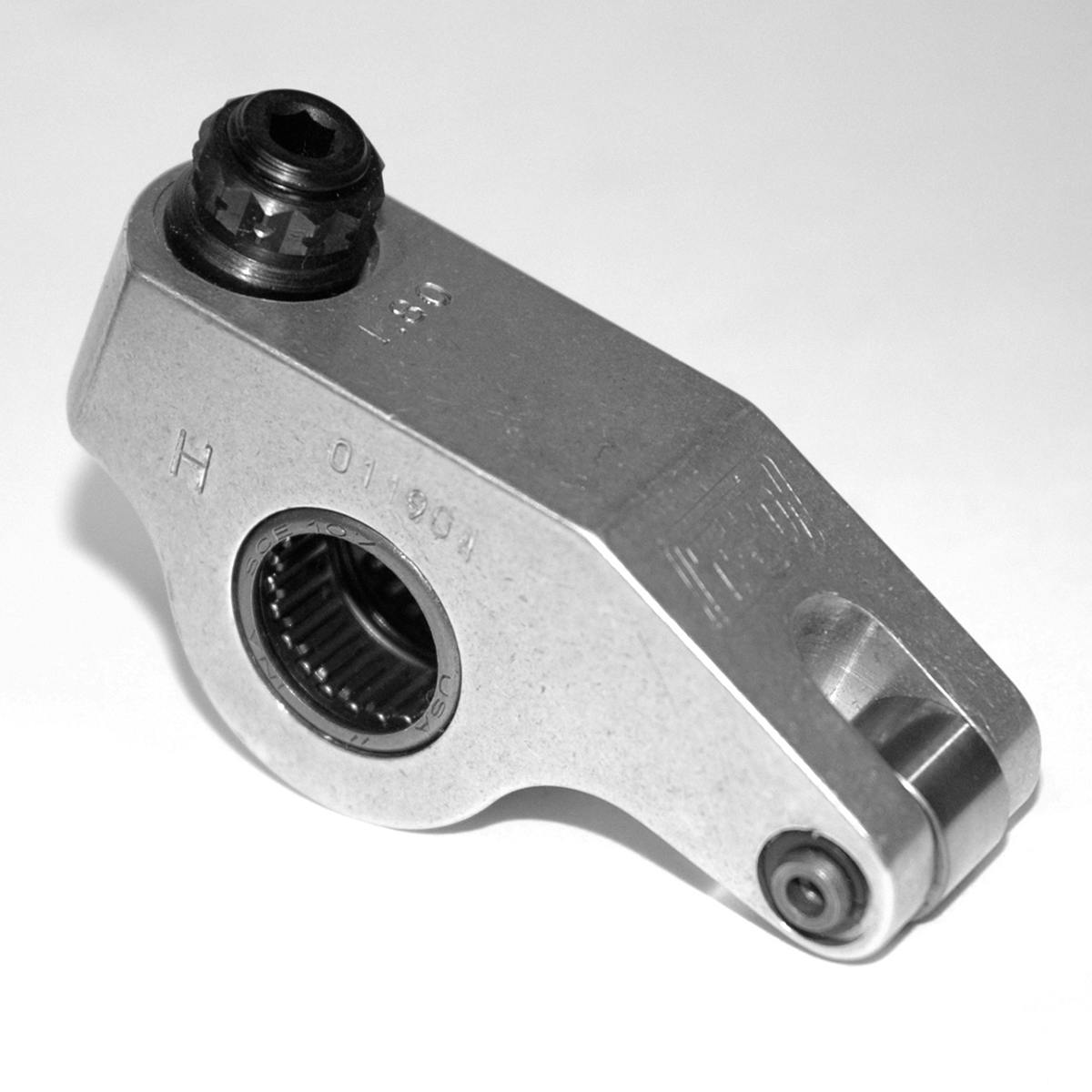

Length, ratio, and offset options are only a portion of the shaft rocker system advantages. The fundamental design of one cross shaft allows for many strength benefits. Not only is the rocker assembly supported by two bolts on each side, by eliminating the stud through the center, beefier roller bearings are featured inside of the rocker arm.
Most engine builders find that because lash settings remain so consistent with shaft rockers, they can diagnose engine problems such as stretched valves and sunken valve seats, before catastrophic failure occurs – Phil Elliot

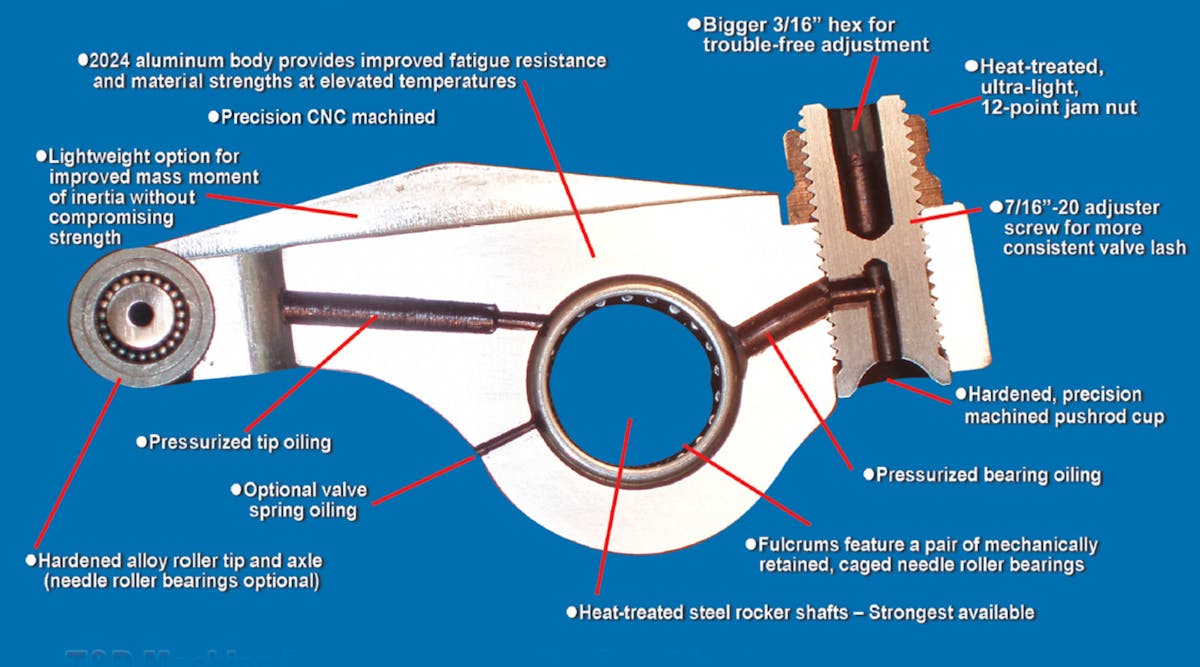

To adjust the valve lash in a stud rocker, the adjusting nut is located at the fulcrum pivot. T&D rockers use a large 7/16-inch adjuster screw at the pushrod cup. This adjustable cup uses heat-treated alloy steel material and a broaching process for longevity.
The materials and machine processes utilized by T&D are held reasonably close to the chest. Though general materials are described, the T&D shop undergoes a constant flux of the latest in machining equipment and product R&D.

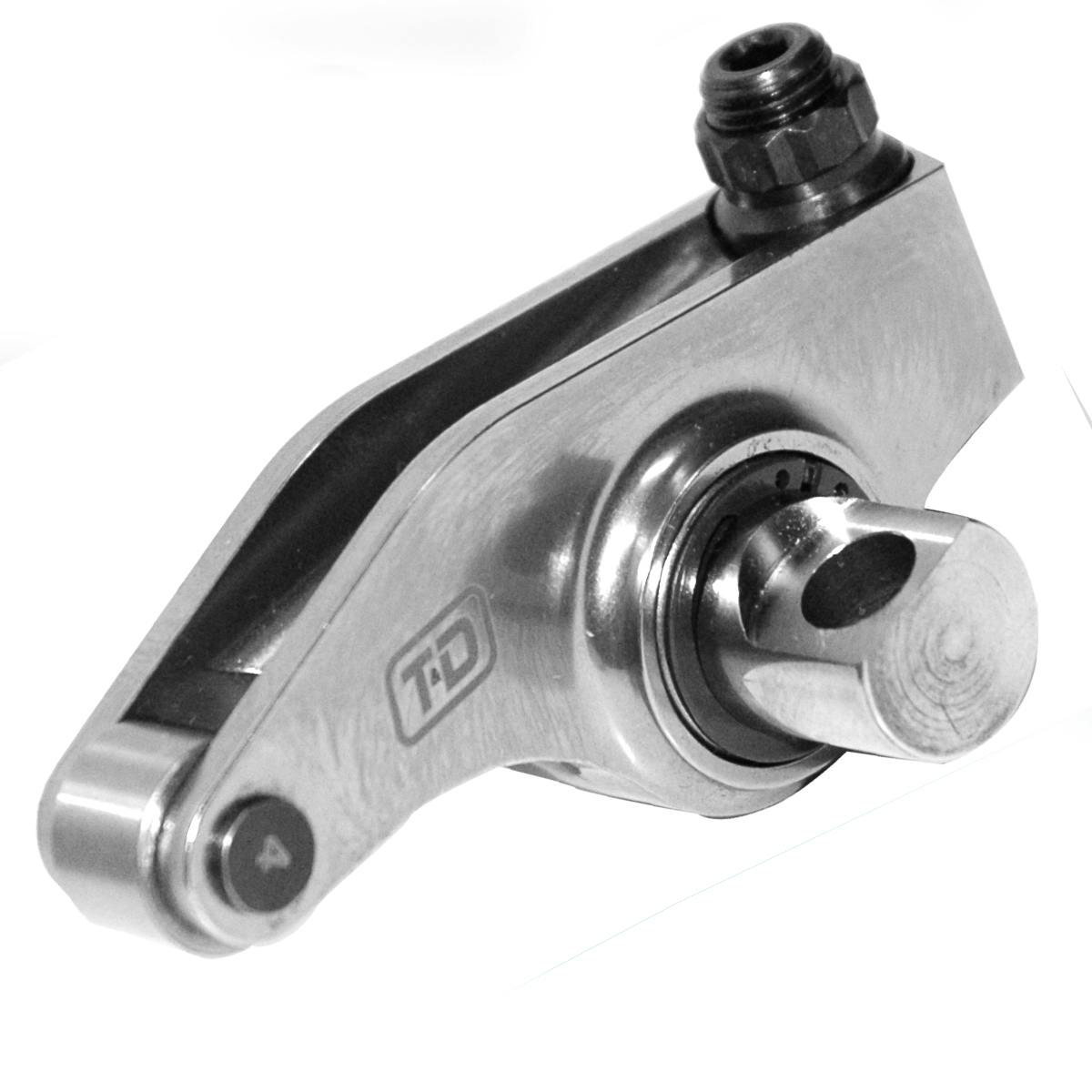

“After years of testing and development, we settled on 2024 aluminum for our standard rockers,” says Miller. “It provides the best combination of strength at elevated temperatures and fatigue resistance. Our steel rockers use a 4130 material because it handles the rigors of extreme racing applications just as well as exotic steels, but at a fraction of the price.”
Elliot expands on the machining methodology within T&D’s shop.
“The tolerances to which we machine our components haven’t changed over time. Some things are non-negotiable. The speed at which we make them has increased. As demand has grown, we have continuously upgraded how we make our parts.”
Match Your Application
Whether you need a bulletproof rocker arm system or a reliable set of rockers for sportsman racing, there are many levels of shaft rocker arms to match your application and pocketbook.
Replacing aluminum with the steel rocker arm option, these ultimate rockers decrease deflection and are engineered with rocker arm weights within a few grams of the aluminum versions.
Strength and durability have become more of a consideration with racers of all levels. When the experience of a failed rocker arm damages cams, pushrods, and even valves and pistons in some cases, raising the bar when considering your valvetrain choices such as rocker arms is an exercise in paying for strength now, rather than repairs later.
