Our friends over at ATI Performance Products have just released a new pan for the TH400 transmission. Crafted in sheet metal and offering a deeper design for more fluid, these pans are perfect for the drag racer looking for better efficiency from their gearbox. Learn more below.

Official Release:

ATI Deep Sheet Metal Pans for T400 Transmissions!

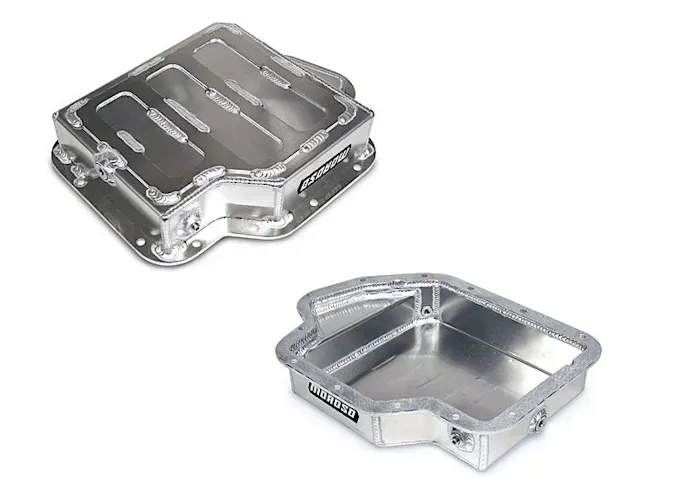

For those racers looking to save some weight and add some functionality ATI Performance Products is proud to introduce an all new deep sheet-metal pan for the T400 and T400 SuperCase. The new pan (Part #403612) is made by Moroso and features a one-piece billet rail to ensure leak free sealing. Precise CNC manufacturing and TIG welding prevent distortion for a perfect fit.

If you are weight conscience you can save 5 lbs over a standard deep cast aluminum pan. The pan features two 1/8th ports for sensor locations, one drain plug on the front to allow the drain to work at the case’s natural angle, trimmed rail flanges, and a skid plate on the bottom.

For those cars with stubborn cross members, the pan has a rear cut out to provide maximum clearance. In addition to ATI’s new custom deep pan, ATI now carries Moroso’s standard T400 Deep Sheet Metal Pan, part #403610. Both pans come complete with all installation hardware.

Features:

• One-piece billet rail to ensure leak free sealing
• You can save 5 lbs over a standard deep cast aluminum pan
• For cars with stubborn cross members, the pan has a rear cut-out to provide maximum clearance
• Features two 1/8th ports for sensor locations, one drain plug on the front to allow the drain to work at the case’s natural angle, trimmed rail flanges, and a skid plate on the bottom
